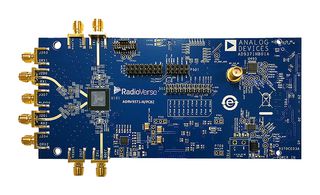

The ADRV9371-W/PCBZ from Analog Devices is a radio card designed to showcase the AD9371. The AD9371 is a high performance wideband integrated RF transceiver intended for use in RF applications such as 4G base station, test and measurement applications and software defined radios. This radio card provides hardware engineers, software engineers and system architects with a single 2x2 transceiver platform for device evaluation and rapid prototyping of radio solutions. All peripherals necessary for the radio card to operate including a high efficiency switcher only power supply solution and a high performance clocking solution are populated on the board. It operates over a wide tuning range 300MHz to 6GHz, however the RF performance is tempered by the very wide band front end match. This board is primarily intended for system investigation and bringing up various waveforms from a software team before custom hardware is complete.
Complete with high efficiency power supply solution and clocking solution for AD9371
FMC connector to Xilinx ZC706 motherboard (EK-Z7-ZC706-G)
