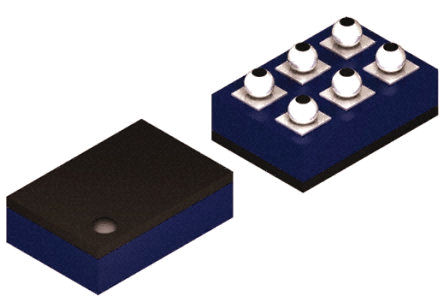

The ADP1196ACBZ-02-R7 is a high- or low-side Load Switch designed for VIN operation between 0 and 5.5V with a VB_EN supply of 1.83 to 5.5V. The device contains an internal charge pump that operates from either VIN or VB_EN, whichever is higher and an ultralow on resistance, N-channel MOSFET. This N-channel MOSFET supports more than 2A of continuous current at VIN close to 0V and with its ultralow on resistance, minimizes power loss. In addition, the on resistance is constant, independent of the VIN or VB_EN voltage. The low 26μA quiescent current and ultralow shutdown current make the ADP1196 ideal for low power applications. When the junction temperature exceeds 125°C, overtemperature protection circuitry is activated, thereby protecting the ADP1196 and downstream circuits from potential damage. The ADP1196 occupies minimal printed circuit board (PCB) space, with an area of less than 1.5mm2 and a height of 0.60mm.
