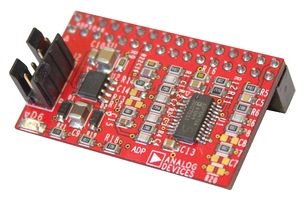

The ADP1047DC1-EVALZ is an ADP1047 daughter card. ADP1047 daughter board development kit allows users to quickly and easily retrofit the ADP1047 into existing design solutions. The daughter card evaluation board allows the ADP1047 to be quickly evaluated in any existing switching power supply application. Using the daughter card and its accompanying software, the IC can be interfaced to any PC running windows 2000/NT/XP/Vista/7 via the computers USB port. It can also be connected to any power supply as a replacement for the existing controller. The daughter card has a connector through which the pin outs of the ADP1047/ADP1048 can be probed. The software GUI allows control and read/write functionality of the ADP1047 internal registers to modify, for example, the PWM settings or over current protection limits.
- ADP1047 daughter card with I2C interface
- Retrofit controller to any topology or existing design
- Software GUI
- Low component count
