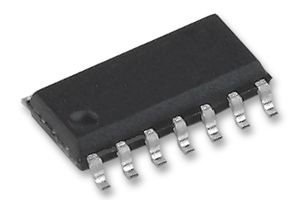

ADN4692EBRZ -

制造商：

ANALOG DEVICES ANALOG DEVICES

制造商产品编号：

ADN4692EBRZ

仓库库存编号：

2094073

技术数据表：

(EN)

The ADN4692EBRZ is a multipoint, low voltage differential signalling (M-LVDS) full duplex transceivers that can operate at up to 100Mbps (50MHz). To improve the integrity of the output signal and minimize reflections, slew rate control is implemented on the driver outputs. The receivers detect the bus state with a differential input of as little as 50mV over a common mode voltage range of -1V to +3.4V. ESD protection of up to ±15KV is implemented on the bus pins. It adhere to the TIA/EIA-899 standard for M-LVDS and complement TIA/EIA-644 LVDS devices with additional multipoint capabilities. The driver allows bus loads of as little as 30R on a multipoint bus topology, and driver output transition times are controlled to minimize reflections. Up to 32 nodes can be connected to the bus. They are type-1 receivers that are designed to have 25mV of hysteresis on the differential input voltage, so that slow changing signals or a loss of input does not lead to output oscillations.

• Conforms to TIA/EIA-899 standard for M-LVDS
• Switching rate is 100Mbps (50MHz)
• Type-1 receiver
• Glitch free power up/power down on M-LVDS bus
• Controlled transition times on driver output
• Enhanced ESD protection on bus pins
• ±15kV HBM (human body model)
• ±10kV IEC 61000-4-2, air discharge
• ±8kV IEC 61000-4-2, contact discharge
