ADL5565-EVALZ -

制造商：

ANALOG DEVICES ANALOG DEVICES

制造商产品编号：

ADL5565-EVALZ

仓库库存编号：

2077558

技术数据表：

(EN)

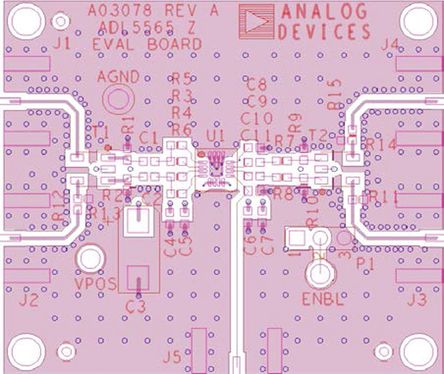

The ADL5565-EVALZ is an evaluation board for ADL5565 devices. It is a fully populated, 4-layer, FR4 based evaluation board. The ADL5565 is a high performance differential amplifier optimised for RF and IF applications. The amplifier offers low noise of 1.5nV/√Hz and excellent distortion performance over a wide frequency range making it an ideal driver for high speed 8bit to 16bit ADC's. For normal operation it requires a single 5V/100mA power supply. The 5V power supply should be connected to the test loops labelled VPOS and GND. The RF input signal is applied to the SMA connector labelled J1. The RF output is available at the SMA connector labelled J2. The evaluation board may be converted to a fully differential input and output by installing SMA connectors. The 3 pin header, P1 controls the enable function. A test loop is provided to allow control from an external signal source.

• 3dB bandwidth of 6GHz (AV = 6 dB)
• Pin strappable gain adjust of 6dB, 12dB, and 15.5dB
• Differential or Single ended input to differential output
• Low noise input stage of NF = 8.7dB at 15.5dB gain
• IMD3 of -113dBc at 100MHz centre
• Gain range from 0dB to 15.5dB using two external resistors
• Slew rate of 11V/ns
• Fast settling and overdrive recovery of 2ns
