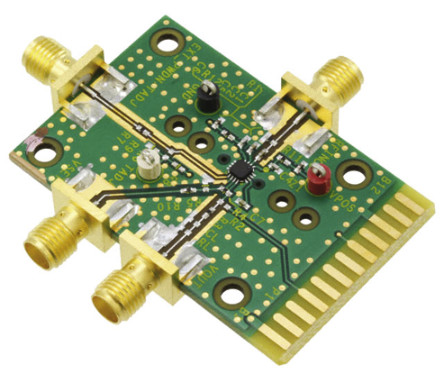

The ADL5513-EVALZ is an evaluation board for ADL5513 demodulating logarithmic amplifier. ADL5513-EVALZ is a fully populated, 4-layer, FR4 based evaluation board. For normal operation, it requires a 5V/50mA power supply. The power supply should be connected to the test loops labelled VPOS and GND. The RF input signal is applied through the SMA connector labelled RFIN. The output signal is accessible through the SMA connector labelled VOUT. The temperature adjust node is connected through a test loop mounted on the circuit board. Optionally a voltage divider powered by VPOS can be constructed using resistors, R8 and R9. The circuit board can also accommodate a 26 pin header through which the power supply, ground, temperature adjust node and output signal pins are accessible. The circuit board ships without this header installed.
- Wide bandwidth of 1MHz to 4GHz
- 80dB dynamic range (±3dB)
- Constant dynamic range over frequency
- Sensitivity of -70dBm
- Low noise measurement/controller output (VOUT)
- Pulse response time of 21ns/20ns (fall/rise)
- Power down feature of 1mW @ 5V
- Fabricated using high speed SiGe process
