ADIS16448BMLZ -

制造商：

ANALOG DEVICES ANALOG DEVICES

制造商产品编号：

ADIS16448BMLZ

仓库库存编号：

2213585

技术数据表：

(EN)

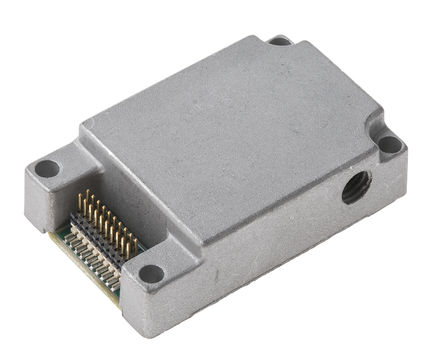

The ADIS16448BMLZ is an complete Inertial Sensor that includes a tri-axial gyroscope, a tri-axial accelerometer, a tri-axial magnetometer and pressure sensors. This combines industry-leading iMEMS? technology with signal conditioning that optimizes dynamic performance. The factory calibration characterizes each sensor for sensitivity, bias and alignment. As a result, this sensor has its own dynamic compensation formulas that provide accurate sensor measurements. Provides a simple, cost-effective method for integrating accurate, multi-axis inertial sensing into industrial systems, especially when compared with the complexity and investment associated with discrete designs. Tight orthogonal alignment simplifies inertial frame alignment in navigation systems. The SPI and register structures provide a simple interface for data collection and configuration control.

• Tri-axial digital gyroscope with digital range scaling
• ±18g Minimum tri-axial digital accelerometer
• ±1.9gauss Minimum tri-axial digital magnetometer
• 10 to 1200mbar Digital barometer
• Autonomous operation and data collection
• 205ms Start-up time
• SPI-compatible serial interface
• Embedded temperature sensor
• Programmable operation and control
• 3.15 to 3.45V Single-supply operation
