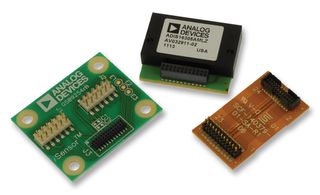

The ADIS16305/PCBZ is a "breakout board, " which provides ADIS16305BMLZ, flexible cable and interface PCB to simplify the process of "prototyping" during the early stages of system design and evaluation. The ADIS16305BMLZ is a fully calibrated, MEMS four degree of freedom Inertial Sensor, which provides a serial peripheral interface (SPI) for all digital communications. The iSensor ADIS16305 is a complete inertial system that includes a gyroscope and triaxis accelerometer. Each sensor in the ADIS16305 combines industry leading iMEMS technology with signal conditioning that optimises dynamic performance. It provides a dual row, 24pin connector interface that minimizes board space but does not support standard ribbon cable connections. The flexible cable and interface PCB provides access to the ADIS16305BMLZ, using dual row, 12pin connectors, which supports standard ribbon cable systems and hand soldering connection techniques.
- Easy connectivity and do not support stand alone functionality
- Compact size minimizes the effect on the system and on sensor measurements
- A stiff and thick PCB minimizes mechanical effects on sensor, delivering truer sensor measurements
- Digital gyroscope with range scaling of ±75°/sec, ±150°/sec, ±300°/sec settings
- Triaxis digital accelerometer of ±3g
- Wide sensor bandwidth of 330Hz
- Autonomous operation and data collection
- Factory calibrated sensitivity, bias, and alignment
- SPI compatible serial interface
- Embedded temperature sensor
