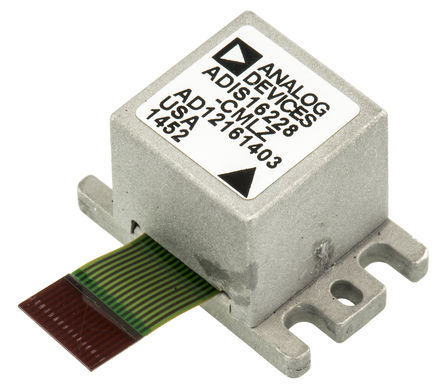

ADIS16228CMLZ -

制造商：

ANALOG DEVICES ANALOG DEVICES

制造商产品编号：

ADIS16228CMLZ

仓库库存编号：

2062024

技术数据表：

(EN)

The ADIS16228CMLZ is an digital triaxial vibration sensor with FFT analysis and storage with 15 lead module with connector interface. The ADIS16228 iSensor is a complete vibration sensing system that combines triaxial acceleration sensing with advanced time domain and frequency domain signal processing. Time domain signal processing includes a programmable decimation filter and selectable windowing function. Frequency domain processing includes a 512 point, real valued FFT for each axis, along with FFT averaging, which reduces the noise floor variation for finer resolution. The 14 record FFT storage system offers users the ability to track changes over time and capture FFTs with multiple decimation filter settings.

• Frequency domain triaxial vibration sensor
• Flat frequency response up to 5KHz
• Digital acceleration data of ±18g measurement range
• Real time sample mode of 20.48KSPS, single axis
• Capture sample modes of 20.48KSPS, three axes
• FFT, 512-point, real valued, all three axes (x, y, z)
• Storage of 14 FFT records on all three axes (x, y, z)
• Programmable alarms, 6 spectral bands
• Internal self-test with status flags
• Digital temperature and power supply measurements
