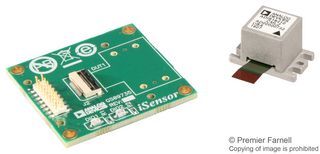

The ADIS16210/PCBZ is a "breakout board," which provides ADIS16210CMLZ and interface PCB to simplify the process of "prototyping" during the early stages of system design and evaluation. The ADIS16210CMLZ is a fully-integrated/calibrated, digital tilt sensor, which provides a serial peripheral interface (SPI) for all digital communications. It provides a flexible connector interface with a 15 lead, cable edge interface. which minimizes board space, but does not support standard ribbon cable connections. The interface PCB provides access to the ADIS16210CMLZ, using a dual row, 16 pin connector, which supports standard ribbon cable systems and hand soldering connection techniques. The interface PCB also provides two sets of mounting holes one set of holes for attaching the ADIS16210CMLZ to the interface PCB and another set of holes for mounting the interface board to the system's frame.
- ADIS16210/PCBZ features triaxial, digital inclinometer system
- It provides digital internal temperature and power supply measurements
- It supports programmable user calibration options
- It provides sample rate/filtering
- It gives alarm conditions and indicator output
- It has power management functions
- SPI compatible serial interface
- It provides serial number and device ID
