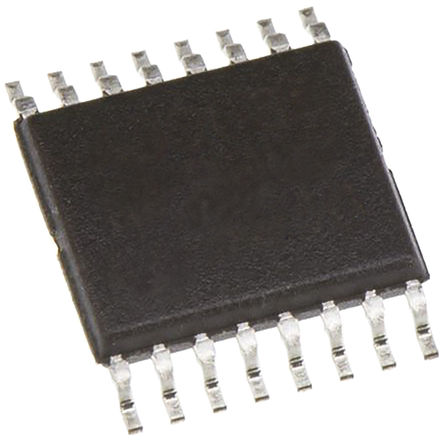

ADG5212BRUZ -

制造商：

ANALOG DEVICES ANALOG DEVICES

制造商产品编号：

ADG5212BRUZ

仓库库存编号：

1903612

技术数据表：

(EN)

The ADG5212BRUZ is a single-pole single-throw (SPST) high voltage quad Analog Switch conducts equally well in both directions when on and each switch has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked. It do not have a VL pin. The digital inputs are compatible with 3V logic inputs over the full operating supply range. The ultralow capacitance and charge injection of this switch makes it ideal solutions for data acquisition and sample-and-hold applications, where low glitch and fast settling are required. Fast switching speed together with high signal bandwidth makes the parts suitable for video signal switching.

• Latch-up proof
• VSS to VDD Analog signal range
• Trench isolation guards against latch-up
• Dual-supply operation up to ±22V
