AD9467-FMC-250EBZ -

制造商：

ANALOG DEVICES ANALOG DEVICES

制造商产品编号：

AD9467-FMC-250EBZ

仓库库存编号：

2311890

技术数据表：

(EN)

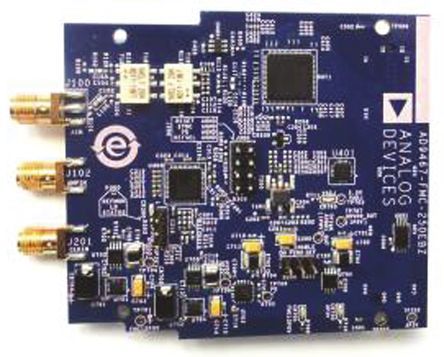

The AD9467-FMC-250EBZ is an evaluation kit for AD9467 16bit, 250MSPS analog to digital converter with FMC. The AD9467 is a 16bit, monolithic, IF sampling analog to digital converter (ADC). It is optimized for high performance over wide bandwidths and ease of use. The ADC requires 1.8V and 3.3V power supplies and a low voltage differential input clock for full performance operation. No external reference or driver components are required for many applications. Data outputs are LVDS compatible (ANSI-644 compatible) and include the means to reduce the overall current needed for short trace distances. A data clock output (DCO) for capturing data on the output is provided for signalling a new output bit. The internal power down feature supported via the SPI typically consumes less than 5mW when disabled.

• SPI and alternate clock options
• Internal and external reference options
• VisualAnalog and SPI controller software interfaces
• IF optimization capability used to improve SFDR
• Ease of use
• Clock duty cycle stabilizer
• External reference support option
• 60fs RMS Jitter
• Integrated input buffer
• External reference support option
