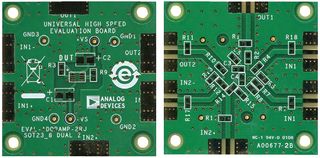

The AD8034ART-EBZ is an universal evaluation board for dual, high speed op amps offered in 8-Lead SOT-23 package device AD8034ART. This evaluation board is designed to help users evaluate the AD8034. The evaluation board is a bare board, there are no components or amplifiers soldered to the board. These parts must be obtained separately. The unpopulated board enables users to quickly customise and prototype a variety of op amp circuits, which minimizes risk and reduces time to market. The evaluation board can be used with almost any Analog Devices dual op amp in various configurations and applications. The evaluation board is a 2-layer PCB that accepts SMA connectors on the input and output for efficient connection to test equipment. The ground plane, component placement, and supply bypassing are laid out to minimize parasitic inductances and capacitances. The evaluation board components are primarily SMT 0805 case size, with the exception of the electrolytic bypass capacitors.
- Enables quick breadboarding/prototyping
- User defined circuit configuration
- Edge-mounted SMA connector provisions
- Easy connection to test equipment and other circuits
