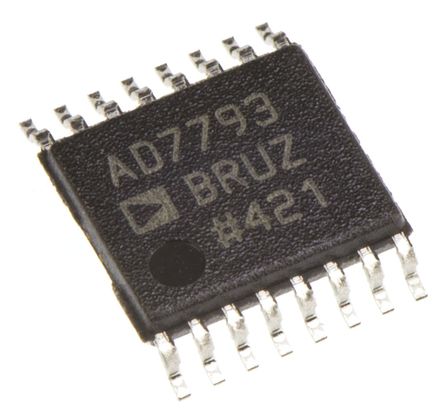

The AD7793BRUZ is a 3-channel 24-bit Low Power Sigma-Delta (Σ-Δ) ADC on-chip in-amp and reference for high precision measurement applications. It contains a low noise 24-bit Σ-Δ ADC with three differential analogue inputs. The on-chip low noise instrumentation amplifier means that signals of small amplitude can be interfaced directly to the ADC. With a gain setting of 64, the RMS noise is 40nV when the update rate equals 4.17Hz. The complete analogue front ends device contains a precision low noise, low drift internal band gap reference and can accept an external differential reference. Other on-chip features include programmable excitation current sources, burnout currents and a bias voltage generator. The bias voltage generator sets the common-mode voltage of a channel to AVDD/2. ADC can be operated with either the internal clock or an external clock. The output data rate from the part is software programmable and can be varied from 4.17Hz to 470Hz.
- Up to 23 bits effective resolution
- 400μA Typical current
- Low noise programmable gain instrumentation amp
- Band gap reference with 4ppm/°C drift typical
- Internal clock oscillator
- Simultaneous 50/60Hz rejection
- Programmable current sources
- Independent interface power supply
测试与测量, 工业, 自动化与过程控制, 传感与仪器, 便携式器材, 医用
