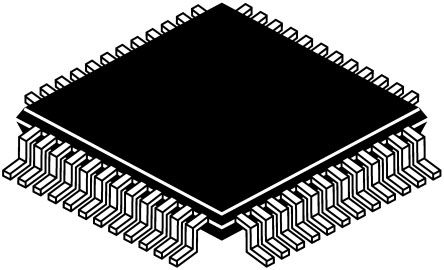

The AD7661ASTZ is a PulSAR? uni-polar charge redistribution SAR Analog-to-digital Converter (ADC) with reference that operates from a single 5V power supply. The part contains a high speed 16-bit sampling ADC, an internal conversion clock, internal reference, error correction circuits and both serial and parallel system interface ports. The converter is hardware factory-calibrated and comprehensively tested to ensure ac parameters such as signal-to-noise ratio and total harmonic distortion, in addition to the more traditional DC parameters of gain, offset and linearity.
- No pipeline delay
- Parallel and serial 5/3V Interface SPI?/QSPI?/MICROWIRE?/DSP compatible
- Pin-to-pin compatible with the PulSAR ADCs
自动化与过程控制, 通信与网络, 传感与仪器, 测试与测量
