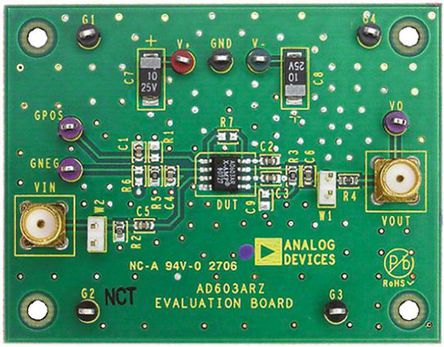

The AD603-EVALZ is an evaluation board for evaluating AD603 device. The AD603 is a low noise, voltage controlled amplifier for use in RF and IF AGC systems. It provides accurate, pin selectable gains of -11dB to +31dB with a bandwidth of 90MHz or +9dB to 51+ dB with a bandwidth of 9MHz. Any intermediate gain range may be arranged using one external resistor. The input referred noise spectral density is 1.3nV/√Hz and power consumption is 125mW at the recommended ±5V supplies. The AD603 evaluation board has built in flexibility that allows convenient configuration to accommodate most operating configurations. Any dual polarity power supply capable of providing 20mA is all that is required, in addition to whatever test equipment the user wishes to perform the intended tests.
- Linear in dB gain control
- Any intermediate range, for example -1dB to +41dB with 30MHz bandwidth
- Bandwidth independent of variable gain
- ±0.5dB typical gain accuracy
