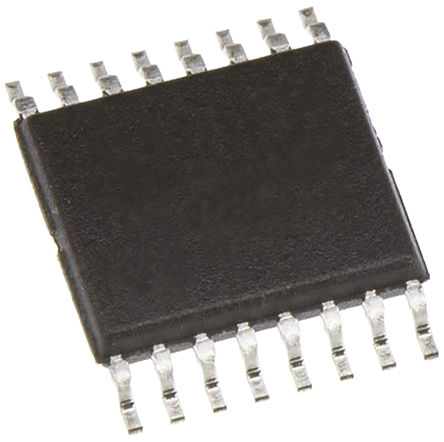

AD5694RBRUZ -

制造商：

ANALOG DEVICES ANALOG DEVICES

制造商产品编号：

AD5694RBRUZ

仓库库存编号：

2112664

技术数据表：

(EN)

The AD5694RBRUZ is a low power quad 12-bit buffered voltage output Digital-to-analog Converter (DAC) operates from a single 2.7 to 5.5V supply, is guaranteed monotonic by design and exhibit less than 0.1% FSR gain error and 1.5mV offset error performance. It includes a 2.5V, 2ppm/°C internal reference (enabled by default) and a gain select pin giving a full-scale output of 2.5 or 5V. It incorporates a power-on reset circuit and a RSTSEL pin that ensures that the DAC outputs power up to zero scale or midscale and remain there until a valid write takes place. It contains a per-channel power-down feature that reduces the current consumption of the device to 4μA at 3V while in power-down mode. It uses a versatile 2-wire serial interface that operates at clock rates up to 400kHz and includes a VLOGIC pin intended for 1.8/3/5V logic.

• Offset error - ±1.5mV maximum
• Gain error - ±0.1% of FSR maximum
• User-selectable gain of 1 or 2
• Robust 4kV HBM and 1.5kV FICDM ESD rating
