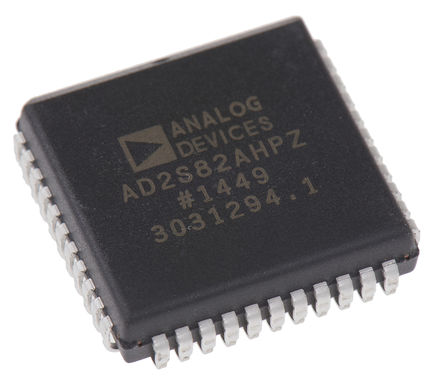

The AD2S82AHPZ is a Variable Resolution Monolithic Resolver to Digital Converter manufactured on a BiMOS II process that combines the advantages of CMOS logic and bipolar high accuracy linear circuits on the same chip. The converter allows users to select their own resolution and dynamic performance with external components. This allows the users great flexibility in defining the converter that best suits their system requirements. The converter allows users to select the resolution to be 10, 12, 14 or 16 bits and to track resolver signals rotating at up to 1040 revs per second (62,400RPM) when set to 10-bit resolution. It has a VCO output which is a measure of position within a LSB and a complement data output. It converts resolver format input signals into a parallel natural binary digital word using a ratiometric tracking conversion method. This ensures high noise immunity and tolerance of long leads allowing the converter to be located remote from the resolver.
- Monolithic (BiMOS II) tracking R/D converter
- Low power consumption
- Dynamic performance set by user
- High max tracking rate
- VCO output
- Data complement facility
电机驱动与控制, 自动化与过程控制, 机器人, 国防, 军用与航空
