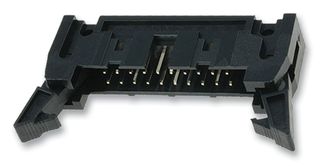

The T816126A1R101CEU is a 26-way 2-row 2.54mm right angled through-hole Header with short latch. This T816 series wire-to-board connector has gold flash over 50μinch nickel plated brass contacts, black housing and a glass-reinforced PBT insulator.
20mR at 1ADC Maximum contact resistance
1000MR at 500VDC Minimum insulation resistance
500VAC at 60Hz for one minute Dielectric withstanding voltage
