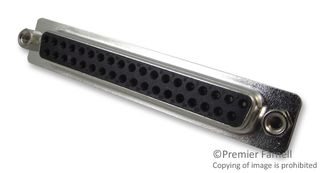

The L17HTNCHSOL2RM81C is a standard D-sub Receptacle with gold-plated brass contacts. The HTN series D-sub connector has tin over nickel-plated steel shell, UL94V-0 glass-filled PA9T thermoplastic insulator and boardlock + front screwlock board mounting. It allows the use of through-hole connectors with reflow soldering process.
Standard density
4-40 Mount
6.02mm (0.237") Termination
5A Current rating
600VAC at 50Hz Voltage rating
1000VAC at 50Hz for one minute Dielectric withstanding voltage
