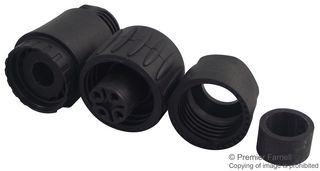

The C016 20D003 100 12 is a 3 + PE-position female straight Cable Connector with silver-plated contacts and black backshell. The C016 series cable connector with strain relief and clamping ring. In design and conception the Ecomate program meets the high requirements for applications in industrial technology. It is suitable for 0.75 to 2.5mm2 wire gauge.
Quick and easy assembly
Ergonomically designed product range for safe handling
Housing components made from premium moulding material
>=10?R Insulation resistance
<=5mR Contact resistance
Protection class IP65/67 in mated condition in accordance with DIN EN 60526
