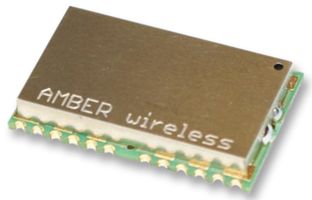

AMB8626-M -

制造商：

AMBER WIRELESS AMBER WIRELESS

制造商产品编号：

AMB8626-M

仓库库存编号：

2345461

技术数据表：

(EN)

The wireless M-Bus standard EN13757-4:2005 specifies the communication between water, gas, heat and electricity meters and concentrators. The standard comprises various operating modes (S, T and R) to meet the requirements of one-way and two-way data communication in stationary and mobile systems. The AMB8626-M is an all embedded low-cost wireless M-Bus radio module operating in the 868 MHz frequency band. The integrated protocol controls the entire data communication. Data packets are built and transmitted according to wireless M-Bus standard. Configuration of parameters is handled via the UART interface. The module automatically adds the Manufacturer ID and the Address based on parameters configured in the radio module. Measured field strength (RSSI value) offers the option of enhancing quality of the radio link.

• Low-cost Wireless M-Bus radio module (868 MHz SRD Band)
• Embedded Wireless M-Bus according to EN13757-4:2005 standard
• Small form factor: 17 x 27 x 4 mm
• Optimized for battery use
• Easy switching between operating modes S1, S1m, S2, T1, T2, R2
• Communication and configuration via UART/SPI Interface
• Supports AES128 data encryption
• Conforms with EU R&TTE 1999/5/EC directive
