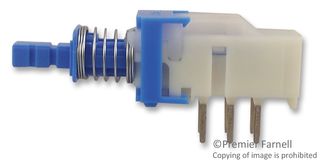

The SPUN series from Alps are push button switches available in SMD and snap-in terminals. These are 2.5mm travel, large horizontal type switches suitable for multiple circuits. Typical applications include FP-TV and DVD players.
- 2 or 4 pole configuration switches
- Maximum rating of 0.1A at 30VDC for standard and 1A at 25VDC for medium current switches
- Initial contact resistance of 20mohm maximum
- Latching and momentary operations
- Operating force of 2N for 2 pole and 3N for 4 pole
- PC board mounting
- Non shorting change over timing
