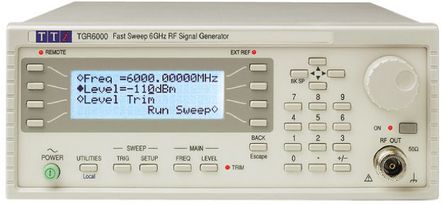

The TGR6000 is a low-cost RF signal generator with a maximum frequency of 6GHz. It is intended for CW (carrier wave) applications where modulation is not required, and avoids the costs associated with adding modulations. Low phase noise is matched by low leakage, low residual FM and spurii. The internal timebase has a 1ppm stability, and an external frequency reference can be used for higher precision.
10MHz to 6000MHz frequency range
Accuracy better than 1ppm over 15°C to 30°C
Ageing better than 1 ppm over one year
External frequency reference input
Low phase noise and low leakage
-110dBm to +7dBm amplitude, 0.1dB steps
Amplitude entry in dBm, μV / mV, or dBμV
User compensation tables for specific test set-ups
Fast stepping sweep with dwell times down to 10ms
Internal or externally triggered sweep, lin or log, up or down
List sweep of up to 1000 points of amplitude vs frequency
Storage for 12 generator set-ups and 16 sweep lists
Compact half-rack 2U casing uses minimum bench space
Full remote control through RS232, USB, LAN or GPIB
Significantly lower cost than other 6GHz generators
