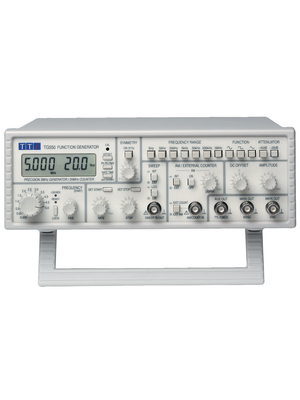

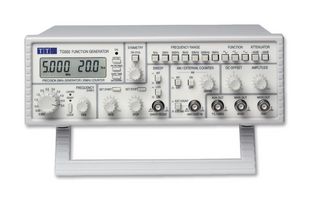

The TG550 represent the state-of-the-art in 5MHz analogue function generators. Providing very high waveform quality under all conditions. That means low sinewave distortion, low aberration triangle waves and fast-edged square waves with low overshoot. Unlike many competitive products good waveform quality is maintained throughout the frequency range and at low output levels.
- 0.005Hz to 5MHz frequency range
- Simultaneous display of frequency & amplitude
- Frequency locking for crystal controlled stability
- Precision internal linear or logarithmic sweep
- External frequency counter with 7 digit resolution
- Very high waveform quality at all frequencies & levels
- 20V pk-pk from 50R or 600R plus TTL/CMOS output
- 1000:1 frequency change by vernier or sweep voltage
- lnternal or external amplitude modulation up to 100%
