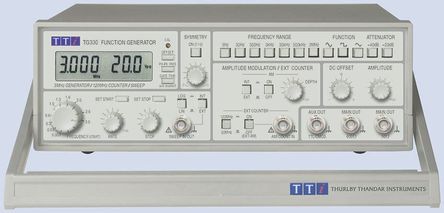

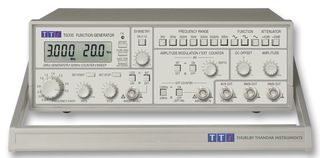

The TG330 includes dual digital display of frequency and amplitude, along with the basic generator functions of sine, square & triangle waveforms, variable DC offset, variable symmetry and an external sweep input. The TG330 adds an external frequency counter with up to 7 digits of resolution covering 5Hz to 120MHz. Plus an internal sweep generator with linear or log sweep, variable sweep rate and a sweep output socket. It also offers internal or external amplitude modulation.
- 0.03Hz to 3MHz frequency range
- Simultaneous display of frequency & amplitude
- External 7 digit 120MHz frequency counter
- Very high waveform quality at all frequencies & levels
- 2mV to 20V pk-pk from 50 or 600
- Auxiliary TTL/CMOS output
- Variable symmetry with constant frequency
- Variable DC offset with zero detent
- 1000:1 frequency change by vernier or sweep voltage
- Precision internal linear or logarithmic sweep
- Internal or external amplitude modulation
