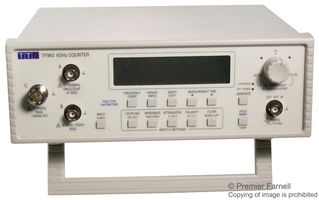

The TF960 uses a high quality temperature compensated internal frequency reference (TCXO) which has a low aging rate and is stable to within ±1ppm over the full temperature range. Its short warm-up time allows accurate measurements to be made even under portable battery powered conditions. An External Reference input is provided and changeover from the internal timebase is automatic when an external reference standard is connected.
0.001Hz to > 3000MHz or 6000MHz frequency range
Frequency, period, pulse width, duty cycle, frequency ratio and event counting modes
High performance temperature compensated timebase
Reciprocal measurement technique gives superior resolution
High input sensitivity over the full frequency range
High impedance DC coupled input up to 125MHz
Variable trigger threshold and switchable attenuator
Large 10 digit LCD display with annunciators
Operation from built-in rechargeable batteries
Low power consumption gives up to 24 hours operation
