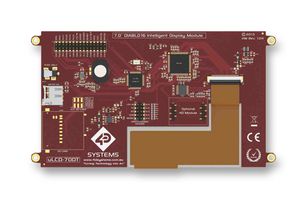

The ULCD-70DT is a 7-inch Intelligent Display designed for applications demanding a large intelligent display module and is the largest size available from 4D Systems to date. Driving the display and peripherals is the DIABLO16 processor, a very capable and powerful chip which enables stand-alone functionality, programmed using the 4D Systems Workshop 4 IDE software. The Workshop IDE enables graphic solutions to be constructed rapidly and with ease due to its design being solely for 4Ds graphics processors. The display module has an array of features including PWM for sound, touch detection, micro-SD memory storage and general purpose I/O including analogue inputs, multiple TTL serial, I2C and SPI channels and multiple millisecond resolution timers.
Easy 5-pin interface to any TTL serial host - VCC, TX, RX, GND and RESET
6 banks of 32750 bytes of flash memory for user application code and data
32kb of SRAM purely for the user
DOS compatible file access (FAT16 format) as well as low level access to card memory
Dedicated raw PWM audio pin driven by WAV files from micro-SD card
GPIO is variously configurable for alternative functions
