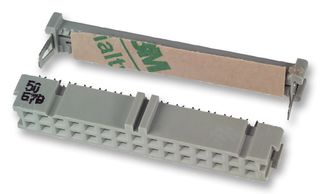

The 3399-6626 is a 26-way 2-row 0.100 x 0.100-inch Wire-to-board Socket for 0.050-inch pitch cable with gold-plated copper contacts. This 3000 series socket comes with glass filled polyester (PBT) insulation and accommodates 28/26AWG solid and stranded wire. It has open end cover (for daisy chaining or bussing), military polarization with centerbump and 26-contacts for plastic strain relief. The wire mount socket mates with 3M headers, plugs and pin strips for quick connect/disconnect capability. Transfer adhesive on covers provides precision alignment between connector and cables resulting in high yield terminations.
Grey color
Industry standard IDC socket
Positive locking metal "J" clips provide high cover retention
