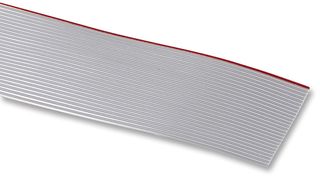

The 3365 series from 3M are round conductor flat cable. The ribbon cable has 28AWG wire size on 0.050inch spacing that permits mass termination to a broad line of IDC connectors. The stranded wire provides flexibility and extended product life.
CPR: Not Yet Qualified
Zippable for branching or discrete termination
Available in gray or black colour
Polyvinyl Chloride (PVC) insulation material
Tinned stranded copper conductor
Voltage rating of 300V
Operating temperature range -20°C to +105°C
6 to 64 conductors based on ordering
First conductor is identified by a red marking on one edge of cable
UL recognised (Style 2651) in VW-1 flame retardant
